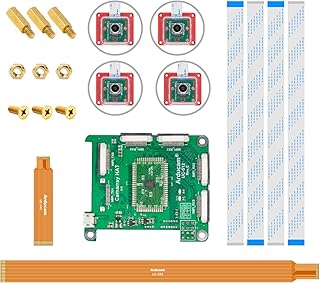

Arducam for Raspberry Pi Camera, 12MP IMX708 Quad-Camera Kit for Raspberry Pi 5, 120°(D) Wide Angle Autofocus Camera, Stereo Synchronized Camera Module

About this item {Stereo Synchronized}: This Arducam for Raspberry Pi camera is designed for Arducam IMX708 Wide Angle Camera Module 3, both video and photographs are available, and the clock is synchronized(accurate to the millisecond level). Achieves full hardware-level frame synchronization for four cameras, eliminating the need for additional time-stamping schemes. {Four in One}: Combines four autofocus cameras into a single frame, each operating at a 1/4 resolution (1152×648), resulting in maximum outputs of 4608×2592 for still images and 1920×1080 for video. (Note that frame rates are halved compared to single-camera operation.) {Flexible Control}: Default operation in quad-channel mode ensures simultaneous image and video capture. This wide-angle camera kit can also support channel switching (Single/Dual/Quad) for versatility. {Exact V3 Function Match}: This camera kit is modified based on Raspberry Pi camera module 3 for compatibility with the IMX708 enabling shared I2C signals and clock while retaining original features such as PDAF and HDR. {Variable Baseline Extension}: Arducam Camarray HAT implements Variable Baseline Extension to achieve synchronized stereo vision across multiple cameras. Quick start guide:bit.ly/QuickStartGuide-B0484 Product Description This Arducam quadrascopic camera bundle incorporates four 12MP IMX708 autofocus cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT. With the new launch of Raspberry Pi Camera Module 3, we have adapted various camera solutions for it. Arducam Camarray Kit is one of them. Arducam Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2. The separated cameras can be used with a variable baseline device and controlled through the computer control system to achieve rapid and dynamic interactive adjustment of the moving parts for human-like multi-degree-of-freedom stereo binocular vision. This kit is expanded based on IMX708, and its function is exactly the same as the official Camera Module 3 (such as pdaf focus, and HDR, etc.). Common Video Modes 1536×864@60fps , 2304×1296 @28fps, 4608×2592@7fps 4 x IMX708 Autofocus Camera Module 1 x Arducam Camarray HAT 4 x 15cm 22pin Camera Cable 1 x 30cm 22pin Camera Cable 1 x 7cm 15-22pin Camera Cable 1 x Screw Pack Highlights IMAGE SENSOR: IMX708 Still Resolution: 11.9 Megapixels Sensor Resolution: 4608 x 2592 pixels Field of View(FOV): 120°(D)x100°(H)x72°(V) FOCUS TYPE: Autofocus Camarray Hat Size: 65 x 56mm Specifications Sensor image area 6.45 x 3.63mm (7.4mm diagonal) Pixel Size 1.4μm × 1.4μm Optical Size 1/2.43″ IR Sensitivity Integral IR-cut Filter, visible light only Output/CSI-2 Speed x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane Output Format RAW10 ISP Support Supported by Raspberry Pi Aggregate mode 1/4 Spelling Combine External Trigger Not Support Camera Interface 2-lane MIPI CSI-2 F.NO F2.2 Lens Mount Stock Lens Focus Distance 10cm~infinity Operating Voltage 5 V +/- 5% Working Current Max 700mA Camera Board Size 24×25 mm Quick start guide: bit.ly/QuickStartGuide-B0484 Product information Technical Details Collapse all Summary Wireless Type ‎Infrared Other Technical Details Brand ‎Arducam Operating System ‎Linux Item Weight ‎4.8 ounces Package Dimensions ‎4.7 x 3.5 x 2.6 inches Processor Brand ‎Broadcom Number of Processors ‎1 Manufacturer ‎Arducam ASIN ‎B0CK2L1Z4F Country of Origin ‎China Date First Available ‎September 28, 2023 Additional Information Best Sellers Rank #5,721 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
