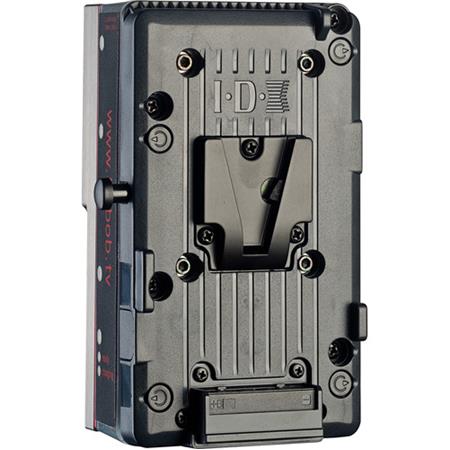

bebob Hot Swap Adapter for V-Mount Cameras

About bebob Hot Swap Adapter Refit bebob batteries aren’t disposables but durable equipment. When the capacity has become insufficient after years of use, batteries can be easily re-celled in our factory! Charging • The ML-120V/V charges itself from the V-Mount battery • At first charge or If completely empty, the ML-120V/V will be ready to use after 60 minutes • While Charging the yellow “Charging” LED turns on • When fully charged the green “Ready” LED turns on • The ML-120V/V charges itself automatically when needed. • During charging The ML-120V/V keep monitoring the voltage of the battery and is ready to switch if needed Battery Swap • The ML-120V/V detects a battery as empty when the voltage drops below 12.5V • The ML-120V/V instantly takes over powering the ARRI Alexa and the D-Tap port for a maximum of 2 minutes and displays a red LED alarm • The LED Alarm flashes for 90s, turns to solid for the last 30s. • After the empty battery has been replaced by a charged one (voltage under load of over 14,5V), powering of the ARRI Alexa instantly reverts to the V-Mount battery. • The ML-120V/V switches up to 6 Times before running empty • If the empty battery is not replaced within 2 minutes the ML-120V/V and the ARRI Alexa will switch off. Alarm LED’s brightness • To allow the Alarm LED to be visible in bright environments (sunlight etc.) but not disturbingly over bright in darker environments (studio etc.), the ML-120 has automatic brightness adjust. • The brighter the environment the brighter the alarm LED will show. • The environment light detector is located at the top – middle of the ML-120 housing. • Covering the housing (with tape for instance) will switch off the automatic brightness adjust and the alarm LED will flash with minimum brightness bebob Hot Swap Adapter Features V-Mount (m) to V-Mount (f) Max. Draw: 15A Powers the camera without interruption for 120s Automatic switching by empty batteries to allow continuous powering of the camera for 120s 2 Step empty battery-alarm 20Wh built-in power-buffer 12V (unreg.) D-Tap Port with self-resetting 5A Fuse Zero maintenance required Works only with V-Mount Lithium-Ion Battery ( nominal voltage between 14.4V and 14.8V) COMPATIBILITY Designed for use with: Power Tap (Ptap/Dtap),V-Mount
