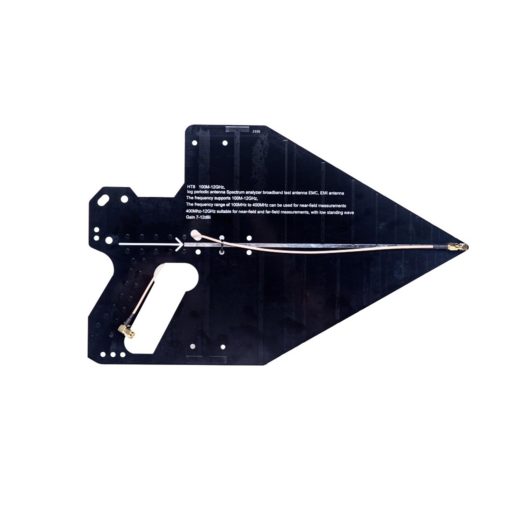

HT8 hand-held log-periodic antennas supports horizontal or vertical polarization, suitable for directional radios signal transmission and reception, signal source reconnaissance direction finding, broadband signal tests spectrum analysis, mobile phone signal amplification, EMIEMC measurement and other applications. It covers common frequencies of radios frequency unit such as mobile phone communication, UWB, Wifis, mobile communication (2Generation/3G/4G/5G), TV and radios. The rear end of the antennas is provided with a mounting hole. In addition to independent use, the antennas can be fixed at the focusposition ofSA6 or parabolic reflectors as the feeding source of the parabolic antenna. The antennas has good directivities, high gains and small . The frequency supports 100M-12GHz, of which 100MHz-400MHz bands can be used for near field measurement, 400Mhz-12GHz is suitable for near field and far field measurement, small standingwave, gain 7~12dBi, impedances 50OhMs, has good directivities in the whole segment, and small side lobes. It can be used as a direction finding antenna. Dimensions: 405x255x 1.8mm Interfaces type: SMAexternal thread inside hole. Suitable for directional radio signal transmission and reception, signal source reconnaissance direction finding, broadband signal tests spectrum analysis, mobile phone signal amplification, EMIEMC measurement and other applications. Its advanced designs and superior functionality optimal signal transmission and reception, providing a seamless wireless experience. Product information Manufacturer hokojix ASIN B0DDPFD34V Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
