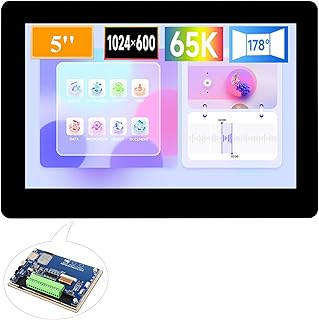

ESP32-S3 Development Board with 5inch Capacitive Touch Screen 1024 x 600 Pixel, 5-Point Touch LCD Display, 32-Bit LX7 Dual-Core Processor, Support W-i-F-i&B L E with Onboard Antenna (Upgraded Ver )

About this item Waveshare ESP32-S3 5inch touch screen is a microcontroller development board. Onboard 5inch capacitive touch display, 1024 x 600 resolution, 65K color, IPS Display Panel, 178° Wide Viewing Angle Capacitive 5-Point Touch— Supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Onboard voltage regulator, supports 7~36V wide range power supply. Onboard R-T–C chip and rechargeable ba tte-ry to ensure time data is not lost when power loss Onboard CAN, RS485, I2C interface and TF card slot, GH1.25 2P ba-tte-ry header and digital isolated IO interfaces, etc. The onboard 5inch touch screen can smoothly run GUI demos such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications With these advantages, the 5inch touch screen meets the power requirements in scenarios such as IoT, mobile devices, and intelligent home applications Provide Online Development Resources /User Manual: bit.ly/3WORs1y Product Description Features This product is a microcontroller development board with 2.4GHz W-i-F-i and B L E 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 5inch capacitive touch display, options for 800×480/1024×600 resolution, 65K color Supports capacitive touch control via I2C interface, 5-point touch with interrupt support Onboard voltage regulator, supports 7~36V wide range power supply Onboard RTC chip and rechargeable ba-tte-ry to ensure time data is not lost when power loss Onboard CAN, RS485, I2C interface, TF card slot, MX1.25 2P ba-tte-ry header, and digital isolated IO interfaces, etc. Supports passive and active digital input, with bi-directional optocoupler isolation Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current Onboard LED indicators for indicating the power and battery recharging status Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios Product information Product Dimensions 0.24 x 2.76 x 1.57 inches Item Weight 0.48 ounces Manufacturer UeeKKoo ASIN B0DDKRV1Z8 Item model number ESP32-S3 5inch Capacitive Touch LCD-B Customer Reviews 5.0 5.0 out of 5 stars 1 rating 5.0 out of 5 stars Best Sellers Rank #5,915 in Single Board Computers (Computers & Accessories) #7,188 in Computer Monitors Date First Available August 19, 2024 Standing screen display size 5 Inches Resolution 1024 x 600 Pixels Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
