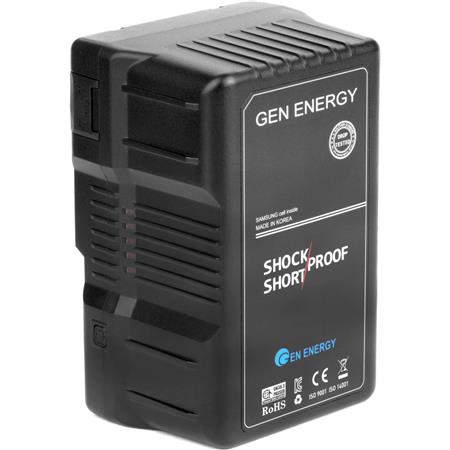

GEN Energy G-B100 14.4V 290Wh Gold Mount Lithium-Ion Battery, 15A Maximum Discharge Rate

About GEN Energy G-B100 Charge • Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger • Charge the battery to full before first use • When you charge this battery, Battery capacity LED gauge button will turn on indicating the capacity being charged • Lithium ion batteries have a slight self discharge, therefore it is recommended to charge prior to use Discharge • Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger • Camera’s low voltage alarm is recommended to set 13-13.5V • Battery will stop at 12V to extend its life. Microwave transmitters with 5W outputs or over should be kept as far away from the battery. It may disrupt or stop supplying power • Be sure to remove the battery from the device after use. If so, it will consume large standby power and over-discharge protection may be activated • USB is activated by pushing Battery capacity LED gauge button. USB power will turn on automatically 30 minute after no use • Battery run time reduces when it is working below or above the recommended temperature range Shock-proof The Most Frequent Accident at the Site is Damage Caused By A Battery Crash The Gen Energy Gold mount battery uses PC materials to provide the strongest protection against physical shock and is a flame retardant zero grade (highest grade) material. Based on this, each cell is protected with a container and the battery is protected from falls through a reinforced vertical frame structure. As a result, the U.S. Department of Defense has obtained the qualifications for the product that meets the military standards. To achieve this robust durability, we adopted a reinforced vertical frame structure, designed with multiple junction structures, which allows eight bolts to retain frames. Inside, a container structure holder was applied to each cell to prevent an internal shock that could be present in a single cell. Containers in the Gen Energy Gold mount battery are made from polycarbonate material. It shows excellent durability in the harshest-case tests and has passed the Millspeck test more than 1.2 meters, 26 times. Self-test has passed 10 meters drop test, 1.5 meters 150 drop test, 1600 RPM vibration test, -20 deg. C to + 60 deg. C (-4 deg. F to 140 deg. F) operation test and has durability that is acceptable for a 3 tonne mass of pneumatic vehicle. Short-proof The Gen Energy Gold mount battery can provide sufficient stable power supply in extreme environments and can handle more devices. Internal circuits do not use wires; they use the highest-grade elements. The main board is built on a 20A basis and the specially built Gold mount connections withstand 12A. Each of the two dabs can easily digest a maximum capacity of 7A. • Powerful electrical protection (Short Proof) • Each cell is mounted separately from the physical space to prevent shock and shock Lowest Impedance All kinds of lightings with Gold mount plate can be powered safely and stably. Minimizing the heat through main output with low impedance and low resistance by large pattern. No-wire design can minimize the heat inside and maximize the efficiency of current. Each end +,- are wide enough to prevent the heat when you use very high current continuously max. 12A, 15A, 22A Highest Grade Electrical Characteristics The Gen Energy Gold mount battery has the most positive properties for electrical resistance in the world of imaging specialist batteries. Based on an advanced internal design, the heat generated by resistance was reduced to a minimum by not using wires and the same parts were selected and composed of the form for maximum efficiency. The battery connection has been specially manufactured and discharged to 10 A for temperatures up to 49 deg. C ( 120.2 deg. F). Most existing broadcast cameras, as well as lighting that require strong power, are These characteristics provide stable power during prolonged filming to prevent equipment malfunctions and provide the potential to capture critical moments. High Speed Charging The Gen Energy Gold mount battery has the fastest charging speed in the world. Up to 6A, four batteries are charged at the same time (with G-C100, G-CB100 chargers) to demonstrate 8x faster charging efficiency than the third party. This function is available on 290W, 195W and 160W batteries. (The 98W battery will charge up to 3.0A.) The Gen Energy Gold mount battery performs real-time, precision cell validation by the Intelligent Cell Balancing Program when charging. As a result, each cell maintains the optimum state of charge. Using the AFE IC, measure the precise cell condition and measure the current due to the ultra-precision resistance of 0.5%. It’s the only and most complete technology with software that controls the hardware by measuring its precise battery charge. Long Life The Gen Energy Gold mount battery is manufactured from Samsung’s 3,500 mA 18650 lithium-ion battery. Self-examination shows that the most electrical components are the best and the best parts are selected through periodic testing. It also protects the battery cell using only 90% of the cell capacity. Due to the nature of the lithium-ion battery, if the remaining battery charge reaches 0%, the life of the battery will fall dramatically. To prevent this, you will be left with a minimum capacity of 10%. Get up to 40% life-boost The Gen Energy Gold mount battery has a super-save capability. If the battery is not used to prevent natural discharge, the main contacts and dabs will go into sleep mode after 48 hours and the USB power after 30 minutes. Press the indicator button once to re-drive the battery. Batteries in super-save mode can be stored at room temperature for one year. (98W 6+ Months).It is recommended that the Gen Energy Gold mount battery use the cell indicator reset function once every 12 months. When the indicator button is pressed for 15 seconds, the processor within the battery checks the inside of the battery to check the status of each cell, such as capacity degradation, to show the correct amount of charge. This product can only be shipped to U.S. addresses. GEN Energy G-B100 Features Shock-proof Short-proof Lowest Impedance Highest Grade Electrical Characteristics High Speed Charging Long Life COMPATIBILITY Designed for use with: Gold Mount,Power Tap (Ptap/Dtap),USB
