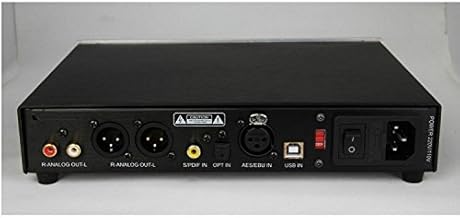

About this item Technical Specifications : USB Input format support: PCM 16-32bit 44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz .DSD64, DSD128. Operating system support: Mac OSX, Linux with UAC2 compliant, Kernel.KS/Wasapi/WDM/ASIO Drivers for MS Windows from XP to Win8 32-64bit. Inputs: Optical, Coaxial, AES/EBU: 16-24Bit, 44.1-192KHZ SNR: -125dB. Dynamic Range: >122dB. THD+N: 0.0005% (This is our test equipment’s lowest resolution). Frequency Response: 20-30KHz-0.2dB. Crosstalk -130dB Full Balanced Output level:4.2V. Headphone amplifier output power: 600¦¸:70mw 300¦¸:150mw 150¦¸:280mw 32¦¸:1W. Power consumption: <30W. size: 250*180*45mm. 1 .LCD display shows the modes. Auto dim after 5 second idle. 2. Input selection. Cycles between Spdif, toslink, aes, usb when pushed. Sampling frequency will be displayed on LCD when signal is locked. DSD logo will be shown when a valid DSD signal is detected. 3.Digital filter mode selection. The default mode has a flat response. When the LED lights up, it is in slow mode which has a slow roll off in high frequency (it is not functional in DSD mode). 4.Jitter eliminator selection. It is bypassed when LED lights up, and sound is tend to slower and softer. When it is on, the sound tend to more focus. However depends on the equipments, you may not hear a difference. 5.Headphone out. Tips: Please let IT warm up for at least 15 minutes for its best ability. Please make sure the air circulation - it is warm because of the design. Please use high quality USB cable. Don't connect it via a USB hub, or extension cable (for example most USB ports in the front of tower case). Connect to the one directly on motherboard. Make sure the mains power's grounding is working. Otherwise there might be a noise. › See more product details Product information Collapse All Expand All Additional details Item Dimensions L x W 9.84"L x 7.09"W Features & Specs Maximum Supply Voltage 4.2 Volts Interface USB Warranty & Support Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions here. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price? Item details UPC 827674622938 ASIN B00VABQAT8 Brand Name GOWE Manufacturer Gowegroup
