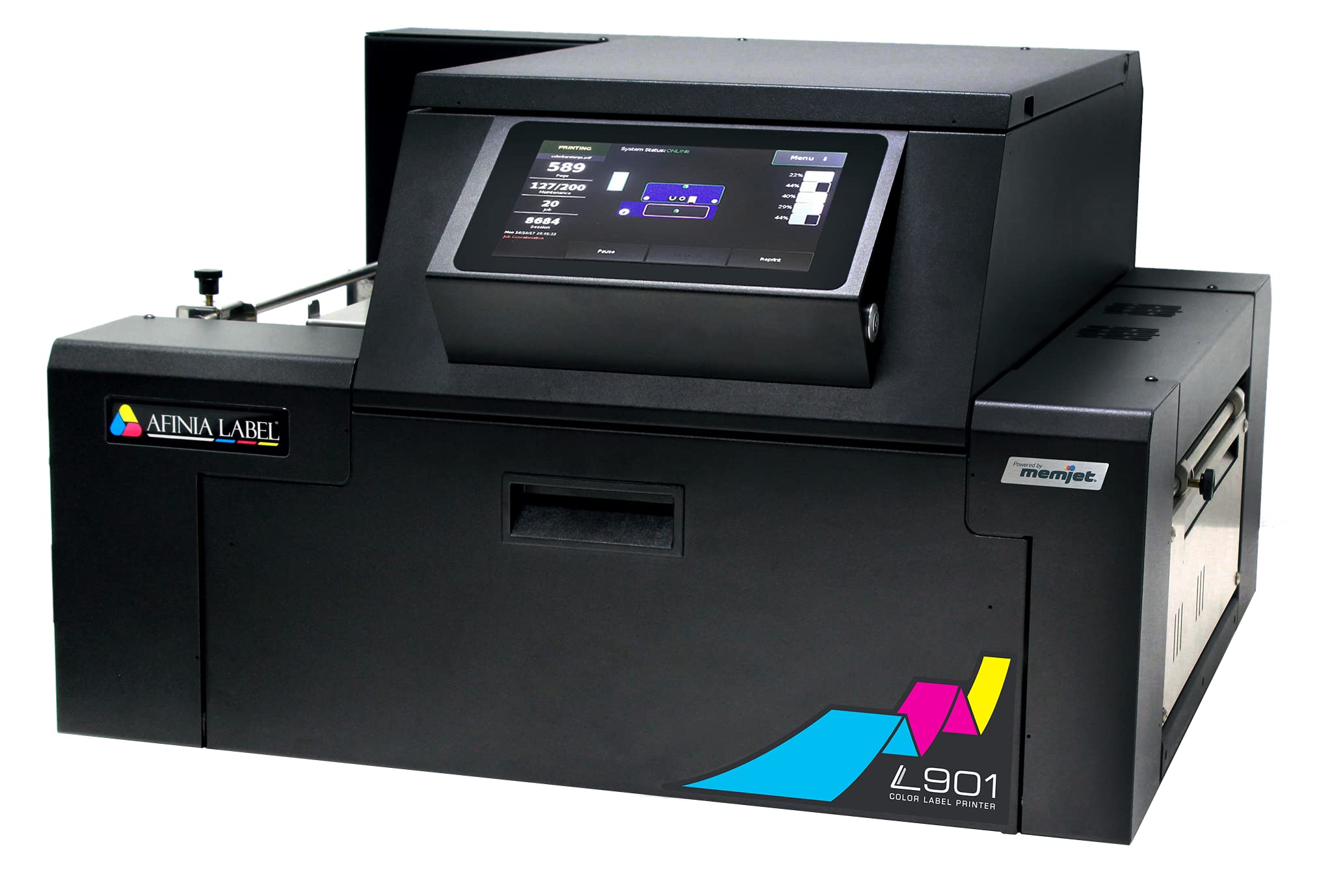

About this item Touchscreen Operation Mid-job printhead maintenance Volume: 10,000–100,000+ labels/month Inline & high-volume printing Super low ink costs › See more product details Product Description Built for inline integration and high-volume roll-to-roll production. Fast print speed and high image quality. Super-low ink costs. Volume: 10,000–100,000+ labels/month. Ink Cost/Label: Extremely Low. Ink Type: Dye. Print Speed: Fast. Max Print Width: 8.5 in (216 mm). Max. Roll Diameter: 10 in (250 mm). Print method: Memjet Waterfall Printhead Technology 11 .Integrated Circuit (IC) Chips – 70,400 nozzles. Inks: Dye-based, 250mL CMYKK (1.25L total). Print resolution: 1600 x 1600 dpi – 1600 x 800 dpi. Print speed: 6 inches (152 mm) per second – 12 inches (305 mm) per second. Print width: 8.5 inches (216 mm). Cutter/sheeter: Powered. Media Size: Width: 2″–9″ (50.8 mm–229 mm). Length: 2″–48″ (50.8 mm–1220 mm). Thickness: Minimum 0.005″ (0.13 mm). Maximum 0.01″ (0.3 mm, including liner). Core diameter*: Requires 3″ (76.2 mm) cardboard core. Media sensors: Gap (movable), continuous, black mark. Die-cut gap: Minimum 0.125″ (3.0 mm). Maximum 0.3″ (8.0 mm). Black mark: 3 mm wide, 25.4 mm long on left. Substrates: Compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks. Interfaces: USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control. Operating system: Windows 7, 8, and 10 (32 and 64 bit). Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width. 2D code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size. Operating temperature: 15°–35° C (59°–95°F) at RH 20–80%. Overall dimensions**: 22.5″ (572 mm) W, 20.5″ (521 mm) D, 14″ (356 mm) H. Weight: 85 lb (38.5 kg). Rated voltage: AC 110V – 220V, auto-sensing. Warranty: One year.
