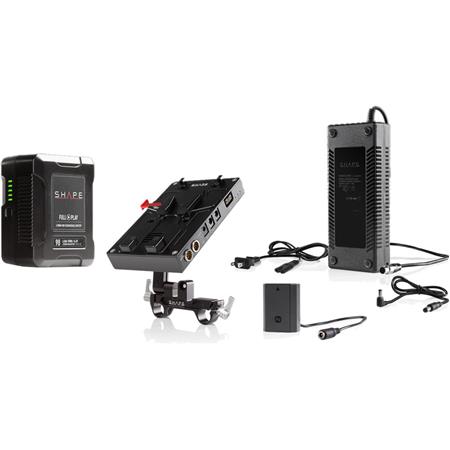

About Shape D-Box – BXA73 D-Box Camera Power and Charger for Sony A7R III and A7 III Series – Use the D-Box Camera Power and Charger from SHAPE to power your Sony A7R3 and a73 series camera and other accessories simultaneously with a V-mount battery (not included) and continuous AC power. Multiple LED indicators on the D-Box show battery and power status. The D-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera. The D-Box has a V-mount battery plate, and on the side, there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there’s a 5V/4A USB Type-A port to power your smartphone or USB accessory. You can power multiple items simultaneously with up to 100W of total power consumption. There are also threaded holes on the back of the plate for mounting options. The charger comes with a cable connector to power your Sony A7R3 and a73 series camera, an 8V output cable, a 15 mm rod mount to use with your 15 mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear. There is also a 15 mm Rod Mount with a knob system to lock and adjust the position of the D-box unit. Features • Compatible with Sony A7R3 and a73 series • V-Mount Battery Plate with Safe Lock (Optional Gold Mount converter GVRPC) • Small size and Lightweight battery plate and rod bracket (1.1 lbs; 0.45 kg) • When the D-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig • 5 outputs: (1) 5V:4A:20W, (1) 8V:5A:40W, (1) 12V:5A:60W, (1) 16.8V:6A:100W, (1) USB 5V:4A • Supports up to 100W power consumption from the device • Comes with a robust 15 mm Rod Mount with locking and angle adjustment system • Threaded holes at the back of the plate for mounting on a cheeseplate • LED indicators for power features • Delta plate to mount on the D-box main unit Connectors • Cable (15”) compatible with Sony A7R3 and a73 series • Output Cable compatible with 8V or 12V outputs • Output 5V:4A • Output 8V:5A• D-TAP output 16.8V:6A • USB output 5V:4A Charger and Power Devices • Power Supply. Input (110-240V:2A 50/60Hz) • Output (16.8V:6A) • BP Charger input to use and charge battery at the same time • Ac Adapter input to use without a battery • AC Power Cable – V98TS FULL PLAY 14.8 V 98 WH Rechargeable lithium-ion V-mount Battery – The SHAPE Full Play V-Mount Battery features a compact design that easily fits on small or large cameras, monitors, lights, or other pro-video equipment. Power-hungry equipment can draw up to 12 amps, between the V-mount and D-Tap on the side. A USB output is provided for small video accessories or for charging smartphones or onset mobile devices. Battery capacity can be quickly checked via the 4-segment LED meter. The battery’s box-like design can be easily stacked for storage or packed away in a case for transport. The new High-Power SHAPE FULL PLAY 98 Wh Rechargeable Lithium-Ion V-Mount Battery outputs 14.8 V and supports up to a 12A continuous draw. The Super High-Capacity V-Mount Battery Series provides a capacity of 6.8Ah and contains high-performance lithium-ion battery cells which are ideal for pro-video cameras, monitors, recorders, wireless transmitters, lighting and other accessories on your rig. This lightweight and small-sized battery enables you to carry a lighter load and free up valuable space besides working perfectly well with gimbals and aerial drones. Perfect for filmmakers on the go, this advanced and compact battery also features a standard D-Tap port for powering accessories during your shoot as well as a built-in USB interface, enabling you to power or charge various electronic and mobile devices; these two outputs can be used simultaneously. In addition, the battery also features a smart built-in short-circuitry protection as well as over-voltage and over-current protection to prevent it from overcharging. The battery is made from durable, shock resistant materials and the power connector from PPS aircraft-grade materials. For quick status checks, the integrated 4-level LED indicator lights display the battery’s remaining charge. Features • 98 Wh (14.8 V) 6.8Ah V-Mount Lithium-Ion Rechargeable Battery • 2-year limited warranty against all manufacturer defects • This IATA approved battery is safe for air travel, simplifying your travel options • High-capacity, reliable quality, long operating time • Supports Up to 12A Continuous Draw • Intelligent Control and Protection Circuit • Temperature, Current and Voltage Protection • No Memory Effect, Environmental Protection • D-Tap and USB Ports made of PPS Aircraft-Grade Materials • Remote Fault Battery Analysis Available • Built-in USB Interface for charging electronic and mobile devices • 4-Level LED Indicator Lights displaying the charging status • Standard working time on full charge is approximately • 6 hours for cameras like the Panasonic AU-EVA1 • Compatible with all the broadcast video cameras using a standard V-Mount battery plate • Powers any standard or high-definition broadcast cameras, 4K digital cinema and 3D camera setups, DSLRs and handheld camcorders that accept a V-Mount battery • Battery can be charged with any standard V-Mount charger or D-Tap charger, including SHAPE Portable D-Tap Travel Battery Charger (DPTCH), SHAPE Intelligent 4-Channel V-Mount Lithium-Ion Battery Charger (V4CHA) and SHAPE Intelligent Dual V-Mount Lithium-Ion Battery Charger (V2PWC) Shape D-Box Features 98 Wh Rechargeable V-Mount Battery Lightweight battery plate and rod bracket (1.1 lbs; 0.45 kg) Up to 12A Continuous Draw D-Box Power & Charger (V-Mount) Compatible with Sony a7 III & a7R III Up to 100W Power Consumption Power Supply & AC Power Cable 8/12V Cable Output Connector a7 III & a7R III Cable Connector 15 mm Rod Mount Bracket Removable Delta Plate 98 Wh Lithium-Ion Battery Included (1.54 lbs; 0.70 kg) COMPATIBILITY Designed for use with: Power Tap (Ptap/Dtap),Sony,USB A,V-Mount
