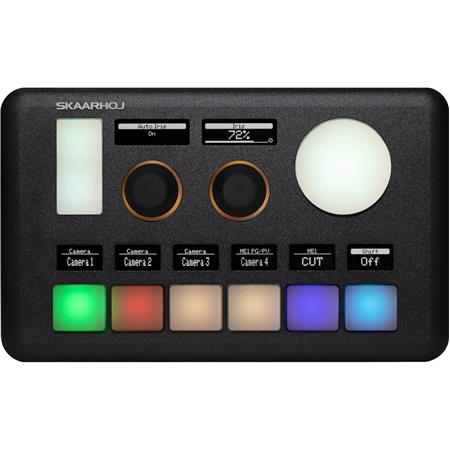

Skaarhoj PTZ Wiz V2 IP-Based Controller and Switcher, Black

About Skaarhoj PTZ Wiz V2 Default Configurations Raw Panel In Raw Panel mode the controller will work as a TCP Client connecting to a server IP address on port 9923. The server receives simple action commands when buttons, encoders, faders etc are activated. In return the server sends button colors and display content. The API is documented as f¬UniSketch TCP Clientf¬ on our GitHub repository. In Raw Panel mode, all the logic is placed on the server, which is typically a custom written software application. ATEM + Lumens VC-A50P Combined Configuration for ATEM and Lumens VC-A50P. The selector row sets and reflects the chosen Lumens camera and Preview/Program source from the ATEM so you know which source is on air. A press on the lower edge on the AUTO/CUT buttons does a CUT. A press on the upper edge activates a auto transition. A press on the upper edge of the SHIFT key cycles between PTZ adjustments settings for the two encoders. A press on the lower edge toggles the selector row between camera/source selected and PTZ Presets. ATEM + Panasonic Combined Configuration for ATEM and Panasonic PTZ cameras. The selector row sets and reflects the chosen Panasonic camera and Preview/Program source from the ATEM so you know which source is on air. A press on the lower edge on the AUTO/CUT buttons does a CUT. A press on the upper edge activates a auto transition. A press on the upper edge of the SHIFT key cycles between PTZ adjustments settings for the two encoders. A press on the lower edge toggles the selector row between camera/source selected and PTZ Presets. ATEM + Ross Pivotcam Combined Configuration for ATEM and Ross Pivotcam The selector row sets and reflects the chosen Ross camera and Preview/Program source from the ATEM so you know which source is on air. A press on the lower edge on the AUTO/CUT buttons does a CUT. A press on the upper edge activates a auto transition. A press on the upper edge of the SHIFT key cycles between PTZ adjustments settings for the two encoders. A press on the lower edge toggles the selector row between camera/source selected and PTZ Presets. NewTek NDI-HX-PTZ1 + ATEM Combined Configuration for ATEM and NewTek NDI-HX-PTZ1. The selector row sets and reflects the chosen NewTek camera and Preview/Program source from the ATEM so you know which source is on air. A press on the lower edge on the AUTO/CUT buttons does a CUT. A press on the upper edge activates a auto transition. A press on the upper edge of the SHIFT key cycles between PTZ adjustments settings for the two encoders. A press on the lower edge toggles the selector row between camera/source selected and PTZ Presets. vMix + PTZOptics PTx Combined Configuration for vMix and PTZOptics. The selector row sets and reflects the chosen PTZOptics camera and Preview/Active source from vMix so you know which source is on air. A press on the lower edge on the AUTO/CUT buttons does a CUT. A press on the upper edge activates a auto transition. A press on the upper edge of the SHIFT key cycles between PTZ adjustments settings for the two encoders. A press on the lower edge toggles the selector row between camera/source selected and PTZ Presets. CANON CR-N500 Made with shift layers Skaarhoj PTZ Wiz V2 Features Multi-functional keys: Multi-function keys for presets, camera selection and live switching Zoom rocker: Pressure sensitive zoom rocker Backlit knobs: High quality backlit knobs for setting camera focus, exposure and more Joystick pad: Pressure direction sensitive joystick pad
