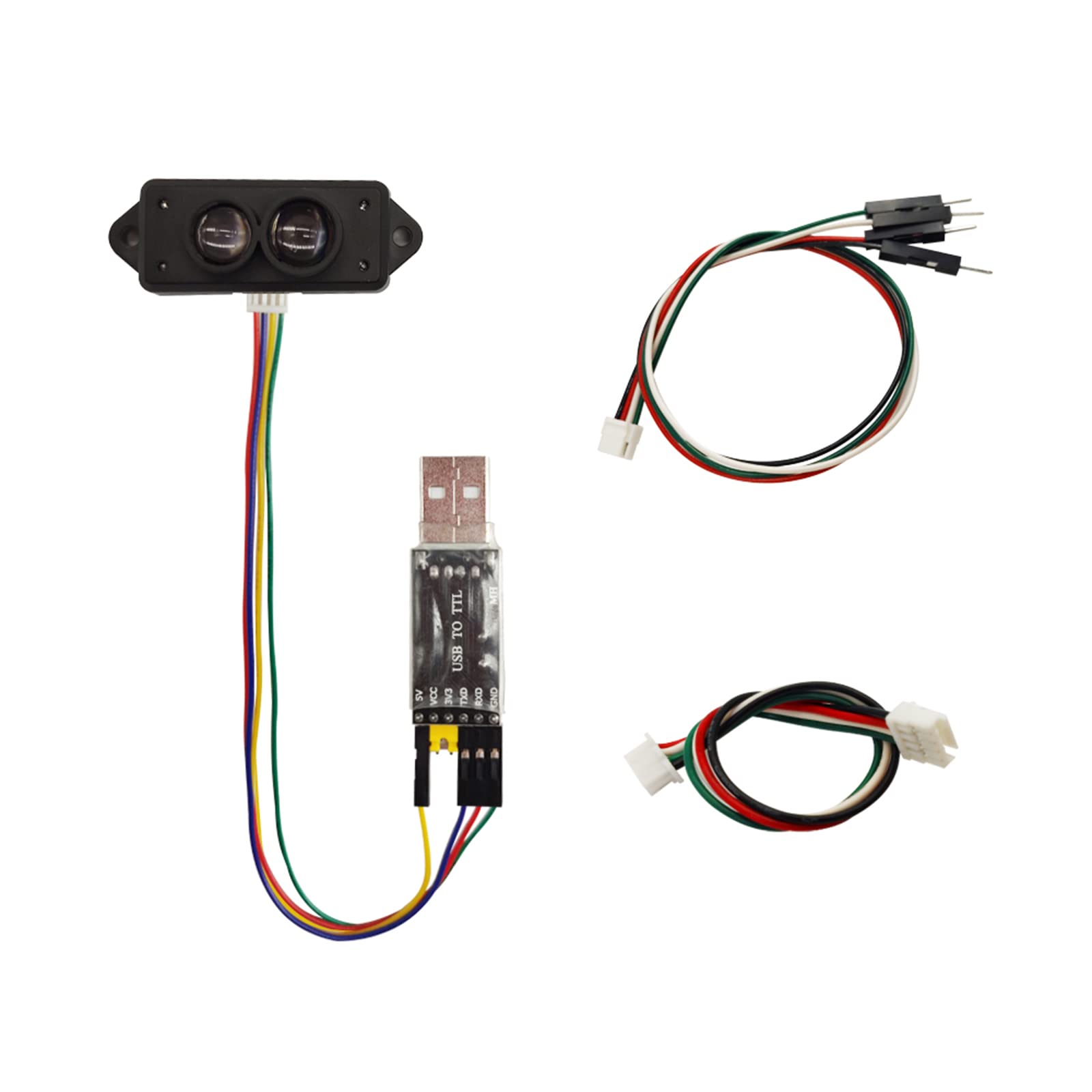

TFmini-s Lidar Sensor 0.1-12m Measurement Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk,Ar duino and Raspberry Pi for Drone/Robot Obstacle Avoidance

[Upgraded TFmini Lidar Module] TFmini-s, based on TFmini, is a single-point short-range LiDAR sensor. Inherited characters of low cost, small size and low power consumption from TFmini,which greatly improved its performance [High Performance] TFmini-s accuracy can reach up to ±1% at full range distance of 12m,increasing the measurement frequency to 1000Hz. The dead zone is shortened to 10 cm improving accuracy and stability. Ambient light immunity is 70Klux and central wavelength is 850nm,but it only keep 5.3g at weight [Low Power Yet High Frame Rate] In low power consumption mode, the maximum power consumption can be lower than 100mW, reducing system power consumption and further prolonging LiDAR lifetime [Optional Commutication Interfaces] To improve applicability, TFmini-s supports common communication interfaces — UART, IIC and IO.TFmini-s version is UART by default. If you need IIC, please switch by yourself. It also compliant with CE,RoHs,and FCC certification [Wiki] You can find more docs by using the document code LD0024 via the link youyeetoo.com/blog/tfmini-sld0024-56.Any technical issues after purchase please contact with our tech-support team: monica @ smartfire.cn. Or click “WayPonDEV” and ask a question
