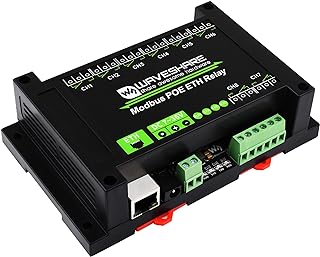

About this item This product is an industrial 8-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case. The Modbus POE ETH Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply. Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo. Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit. Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High-quality relay, contact rating: ≤10A 250VAC/30VDC. Product information Connector Type Screw Terminal Current Rating 10 Amps Mounting Type DIN Rail Mount Brand waveshare Operation Mode Automatic Wattage 3.6E+2 Coil Voltage 36 Volts Maximum Switching Current 10 Amps Package Dimensions 6.34 x 4.25 x 1.89 inches Item Weight 10.2 ounces Manufacturer Waveshare ASIN B0CDGR7KFZ Customer Reviews 4.1 4.1 out of 5 stars 6 ratings 4.1 out of 5 stars Best Sellers Rank #3,251 in Single Board Computers (Computers & Accessories) Date First Available August 2, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
