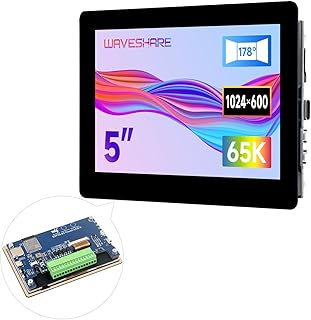

About this item Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 5inch capacitive touch display, options for 800×480/1024×600 resolution, 65K color Supports capacitive touch control via I2C interface, 5-point touch with interrupt support Onboard voltage regulator, supports 7~36V wide range power supply Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss Onboard CAN, RS485, I2C interface and TF card slot, GH1.25 2P battery header and digital isolated IO interfaces, etc. Supports passive and active digital input, with bi-directional optocoupler isolation Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current Onboard LED indicators for indicating the power and battery recharging status Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios Rich WiKi Resources: We provide official Wiki resources, please contact us for more information. Product Description ESP32-S3-Touch-LCD-4 Add to Cart ESP32-S3-Touch-LCD-4.3 Add to Cart ESP32-S3-Touch-LCD-4.3B Add to Cart ESP32S3-TouchLCD-4.3B-BOX Add to Cart ESP32-S3-Touch-LCD-5 Add to Cart ESP32-S3-Touch-LCD-5B Add to Cart ESP32-S3-Touch-LCD-7 Add to Cart Customer Reviews 4.4 out of 5 stars 4 3.5 out of 5 stars 37 4.7 out of 5 stars 5 — — 5.0 out of 5 stars 2 4.2 out of 5 stars 26 Price $43.99 $43 . 99 $37.59 $37 . 59 $42.99 $42 . 99 $57.99 $57 . 99 $48.99 $48 . 99 $49.99 $49 . 99 $49.99 $49 . 99 Flash/PSRAM 16MB Flash + 8MB PSRAM 8MB Flash + 8MB PSRAM 16MB Flash + 8MB PSRAM 16MB Flash + 8MB PSRAM 16MB Flash + 8MB PSRAM 16MB Flash + 8MB PSRAM 8MB Flash + 8MB PSRAM Power Supply TypeC 5V + DC 7-36V TypeC 5V TypeC 5V + DC 7-36V TypeC 5V + DC 7-36V TypeC 5V + DC 7-36V TypeC 5V + DC 7-36V TypeC 5V Resolution 480×480 800×480 800×480 800×480 800×480 1024×600 800×480 Display Interface RGB RGB RGB RGB RGB RGB RGB Display Panel IPS IPS IPS IPS IPS IPS IPS Viewing Angle 160° 160° 160° 160° 160° 178° 170° Touch Type capacitive capacitive capacitive capacitive capacitive capacitive capacitive Touch Panel Toughened Glass Toughened Glass Toughened Glass Toughened Glass Toughened Glass Toughened Glass Toughened Glass Dimensions (L×W) 84.2×84.2mm 106.1×67.8mm 112.4×75.1mm 116.3×79mm 127.7×87.45mm 127.7×87.45mm 192.96×110.76mm Operating Temperature 0℃ ~ 65℃ 0℃ ~ 65℃ 0℃ ~ 65℃ 0℃ ~ 65℃ 0℃ ~ 65℃ 0℃ ~ 65℃ 0℃ ~ 65℃ Product information Technical Details Collapse all Summary Processor 2.4E+2 RAM PSRAM Wireless Type Bluetooth, 802.11b Other Technical Details Brand waveshare Series ESP32-S3-Touch-LCD-5B Item model number ESP32-S3-Touch-LCD-5B Item Weight 5.1 ounces Product Dimensions 0.55 x 5.03 x 3.44 inches Item Dimensions LxWxH 0.55 x 5.03 x 3.44 inches Processor Brand Espressif Number of Processors 2 Manufacturer Waveshare ASIN B0DD7N19FT Country of Origin China Date First Available August 15, 2024 Additional Information Customer Reviews 5.0 5.0 out of 5 stars 2 ratings 5.0 out of 5 stars Best Sellers Rank #560 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
