Wooden Camera B-Box for RED KOMODO Camera

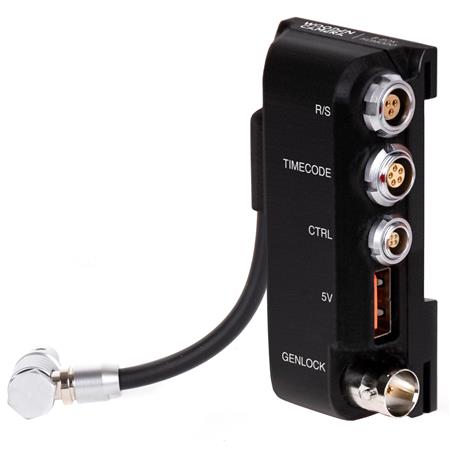

About Wooden Camera B-Box B-Box (RED KOMODO) attaches to the camera-right BP-9 battery slot and provides a breakout for the camera’s EXT connector. Battery Slide Pro V-Mount or Gold Mount for RED KOMODO can be used simultaneously and custom right-angle LEMO compatible connector allows for neat cable run. Canon BP-9 batteries could also be attached in camera-left slot while B-Box is used. Available ports include: R/S (3pin Fischer) • Simple run/stop for Handgrip Trigger Box, Simple 3pin Fischer Trigger Cable, etc. • No power available • Devices like ARRI WCU-4 may require CTRL port interface with cable K2.0015758 • pin1: GND, pin2: N/C, pin3: GPI Timecode (5pin LEMO) • Standard wiring for timecode in/out • Pin1: GND, pin2: LTC-IN, pin3: N/C, pin4: N/C, pin5: LTC-OUT CTRL (4pin LEMO) • Standard wiring for RED CTRL • Pin1: GND, pin2: UART-RX, pin3: GPO, pin4: UART-TX 5V (USB) • 5V available at 500mA maximum • Power may need to be enabled in camera menu Genlock (BNC) • Standard wiring for genlock • Center: signal, shell: GND COMPATIBILITY Designed for use with: Gold Mount,RED System,V-Mount
